Name：DPH Bridge type stone cutter with slide assmblies
Details

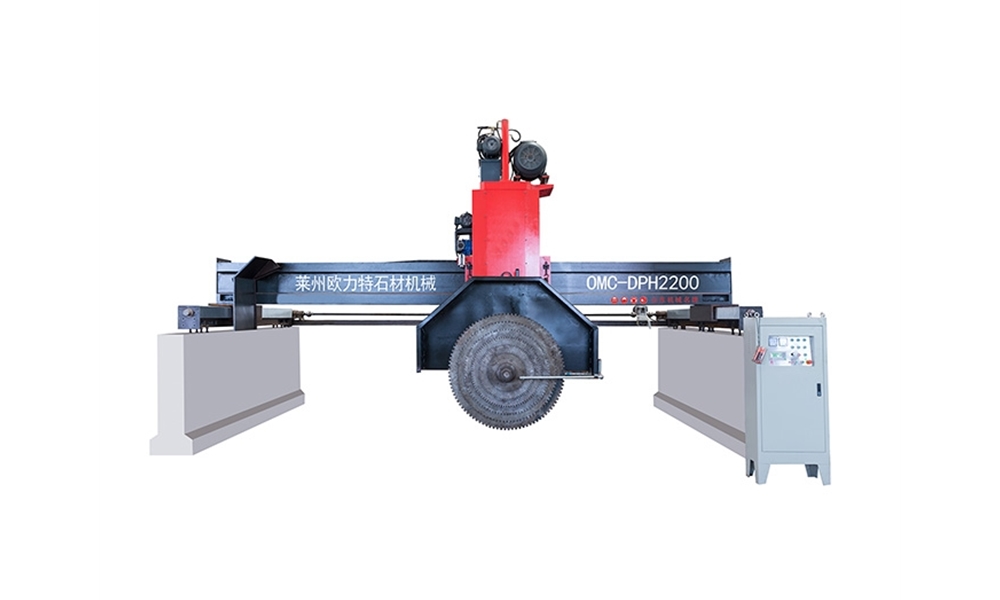

OMC-DPH2200/2600/2800/3000 Bridge type stone cutter will fit with monolithic or multi-blade in different sizes to cut the stone block.The lifter comprises of high quality cast iron.It’s anti-abrasion,no easy deformed,maintain convenient,high efficiency in producing and higher a ccuracy in cutting characters.The knife moving in left and right direction is contrlled by variable-frequency drive(VFD) and the speed will be adjustedc depend ond hardness of the stone.The lift moving up and down is driven by hydraulic pressure cylinder(or by lead screw).The front and rear moving of blades is driven by high-precision lead screw on the two side beam.Some key parts comprise of imported accessories with high quality.So the blocks can be put on the ground to cut to save the working table and its maintaining fee.Hence,the stone cutter is featured with high efficienty.high accuracy of blades moving ,high stable,easy poerating,the processing slab is high flatness products.
The machine is suitable for cutting high value granite,marble and other block materials.In addition,the accessories of DPH-2200/2600/2800/3000 bridge type stone cutter can be chosen by customers demands.
| Max. diameter of blade （mm） | 2200 | 2600 | 2800 | 3000 |
| Max. cutting length（mm） | 3500 | 3500 | 3700 | 3500 |
| Max.cutting width（mm） | 2200 | 2200 | 2200 | 2200 |
| Max.cutting depth（mm） | 950 | 1150 | 1250 | 1350 |
| Max.distance of lifting（mm） | 1400 | 1400 | 1400 | 1600 |
| Water consumption（m3/h） | 37 | 45 | 55 | 55 |
| Total power（KW） | 48 | 56 | 66 | 66 |
| Weight（kg） | 11000 | 11500 | 12000 | 12500 |
| Overall dimension(LxWxH)（mm） | 7300*4500*6800 | 7500*4500*6800 | 8000*6800*7000 | 8000*6800*7000 |
|
