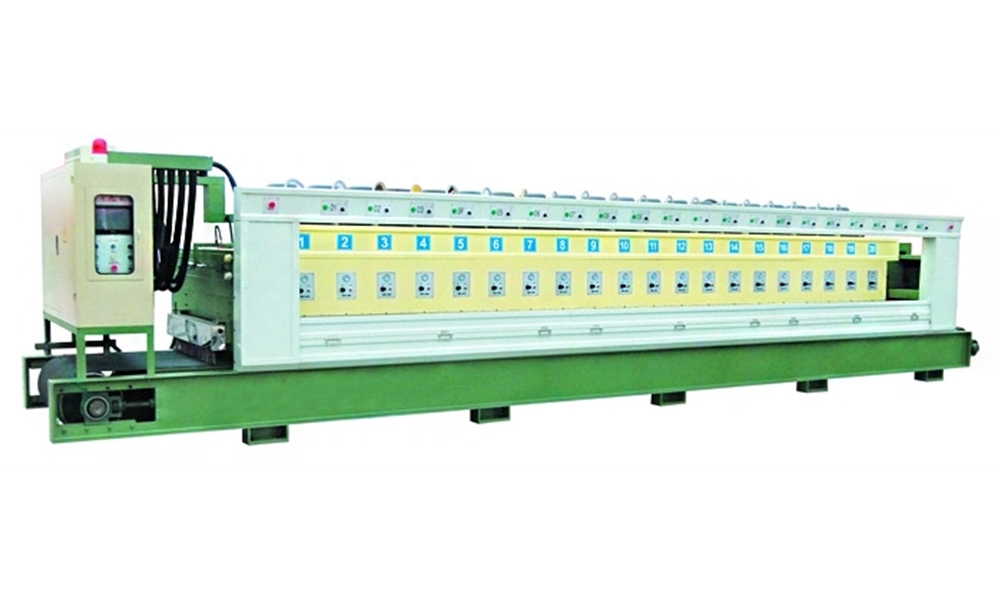

Name：LXM10-16head automatic polishing machine
Details
The machine uses resin disc as grinding disc, because resin disc is light in weight, small in consumed power, and high in grinding efficiency; air pressure controls lifting and falling of grinding disc and pressuring range is adjustable; oscillating beams can drive grinding disc for moving and movement speed is adjustable; belt of belt-type board-sending workbench can is adjustable; electrical system adopts PLC and human-computer interface.| Grinding disc diameter | Φ200mm |
| Width of grinding and polishing panel | 300-1000mm |
| Thickness of processing panel | 10-40mm |
| The number of grinding head | 16pieces |
| Main motor | 12*7.5kw |
| Weight | 6500kgs |
| Spatial size | 7200*2360*2560mm |
|
